Objavljeno: 19.03.2019

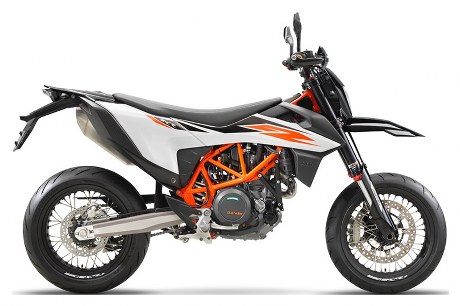

The KTM 690 SMC R raises the bar for street hooligans.
The revised chassis and styling are boosted by the latest 690 LC4 motor and an updated electronics package, so whether you express your tarmac-sliding talent on mountain roads or on the track, you’ll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline.
Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.
ENGINE
DESIGN
1-cylinder, 4-stroke engine
DISPLACEMENT
693 cm³
BORE
105 mm
STROKE
80 mm
POWER IN KW
55 kW
POWER IN HP
74 hp
TORQUE
73.5 Nm
STARTER
Electric starter
LUBRICATION
Forced oil lubrication with 2 oil pumps
TRANSMISSION
6-speed
COOLING
Liquid cooled
CLUTCH
PASC (TM) slipper clutch, hydraulically actuated
EMS
Keihin EMS with RBW, twin ignition
CO2 EMISSIONS
90 g/km
FUEL CONSUMPTION
3.87 l/100 km
CHASSIS
FRAME DESIGN
Chrome-moly tubular space frame, powder-coated
FRONT SUSPENSION
WP USD Ø 48 mm
REAR SUSPENSION
WP shock absorber with Pro-Lever linkage
SUSPENSION TRAVEL (FRONT)
215 mm
SUSPENSION TRAVEL (REAR)
240 mm
FRONT BRAKE
Brembo four-piston radial fixed calliper, brake disc
REAR BRAKE
Single-piston floating calliper
FRONT BRAKE DISC DIAMETER
320 mm
REAR BRAKE DISC DIAMETER
240 mm
ABS
Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
CHAIN
X-Ring 5/8 x 1/4"
STEERING HEAD ANGLE
63.6 °
SEAT HEIGHT
890 mm
TANK CAPACITY (APPROX.)
13.5 l
DRY WEIGHT
147 kg
